Fire Brigade Maps Template

The creation of fire brigade maps is based on a graphic template. The available templates are stored in the following System Browser path:

Libraries > Fire > Device > Fire Brigade Maps > Graphic Templates

Starting from scratch or from the default template (see below), you can create your own template using the Desigo CC graphic editor. See Customizing the Fire Brigade Map Template.

The template can include the variable elements illustrated in the following table. In the map generation, the variables will be replaced by the actual information of the objects being processed.

Item	Description	Graphic Editor Format
Image (mandatory)	At least one image must exist as a placeholder for the map. In the Description property, the placeholder image must contain FireBrigadeMapPlaceholder	Image
%DateTime%	Date and time of pdf generation	Text
%ObjectName%	Object technical name	Text
%ObjectDescription%	Object description	Text
%ObjectLocation%	Location name (reduced string without initial system name and view name)	Text
%ObjectLocationDescription%	Location description (reduced string without initial system name and view name)	Text
%ObjectAlias%	Object alias	Text
%ObjectView%	View name	Text
%ObjectType%	Object type as specified in the function / Object Model	Text
%ObjectSubType%	Object subtype as specified in the function / Object Model	Text
%ProjectName%	Project name	Text
%ParentObjectName%	Parent object name	Text
%ParentObjectDescription%	Parent object description	Text
%MapNumber%	Map number, as imported from the control panel database	Text
%ChildrenNumber%	Number of child objects	Text
%Remarks%	Remark common to all the fire brigade maps generated. Specified in the Fill remarks field of the generator wizard, as part of the Configure output style step. See Generating Fire Brigade Maps From Graphics.	Text
%Specific_Remarks%	Remark specific to the object (for example, zone) for which each fire brigade map is generated. Specified in an external CSV file (it must be in ANSI encoding). For more information, see Specific Remarks, below.	Text

Default Graphic Templates

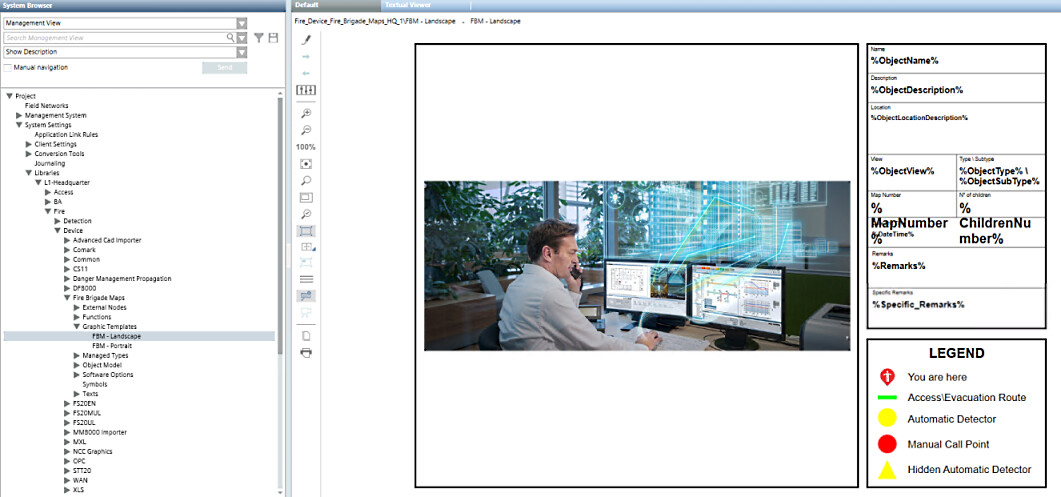

Fire Brigade Map – Landscape Graphic Template

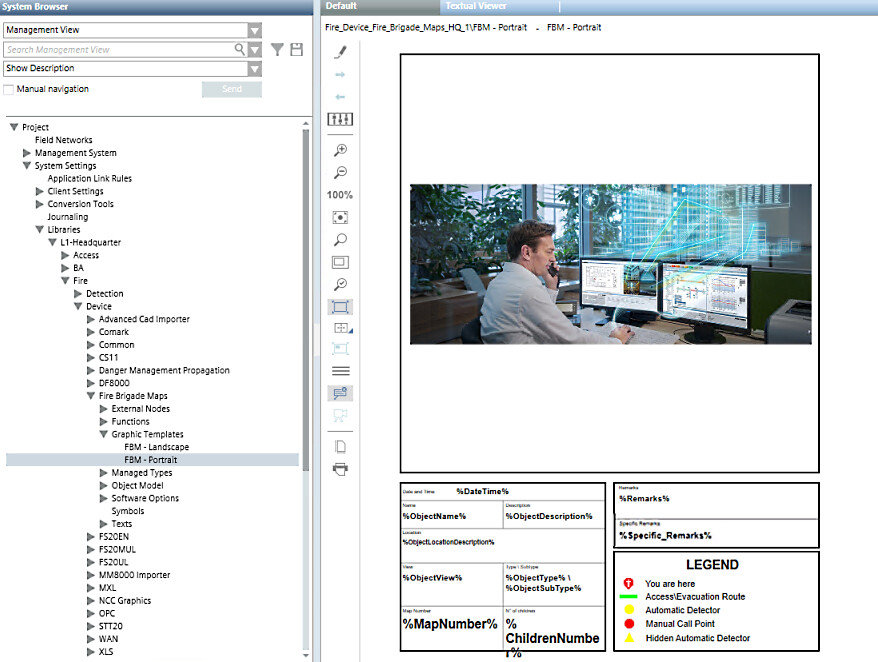

Fire Brigade Map – Portrait Graphic Template

Dimensions and Quality of the Graphic Templates

In modifying a graphic template for the fire brigade maps or creating a new one, consider the following criteria to achieve the best results in the PDF output:

The X/Y aspect ratio of the placeholder image should match the ratio of the CAD drawing that will be imported. A different aspect ratio will result in smaller images.
The global X/Y aspect ratio of the graphic template should match the ratio of the PDF output, typically A4 format (1:1.414 ratio) or Letter format (1:1.2941 ratio). In the Graphic Editor, you can set the global size of the graphic in pixels. Depending on the required output quality (for display only or print), you can apply the following graphic sizes:

A4: 1754x1240 for display-only use (150 DPI, default), or 3508x2480 for printer-quality at 300 DPI.
Letter: 1275x1650 for display-only use (150 DPI), or 2550x3300 for printer-quality at 300 DPI.

Note that higher quality images require larger files and take longer to load. Test any new graphic template and carefully check the results.

Specific Remarks

The %Specific_Remarks% section of the template is populated with object-specific remarks specified in a .CSV file. This file must contain:

An <address> column containing the numeric identifier of the objects. The numeric identifier is the substring of the object name that follows the last underscore. It will typically be of the form <zone number> or <zone number>/<child detector number>. For some examples, see the table below.
Format: text string.
A <remarks> column containing the specific remark you want on the Fire Brigade Map for that object.
Format: text string.

The <address> and <remarks> columns in the .CSV file must have headers, and you will have to specify their header names during configuration. However, the columns do not need to be adjacent, and the CSV file may contain other columns, which will be ignored for the purposes of specific remarks.
The only value separator that is recognized and supported is the semicolon.

Example of Desigo CC object name	corresponding <address> entry of CSV file	<remarks> entry in CSV file	propagation notes
`Zone_190101`	190101	Remark for zone 190101	If the CSV file includes a row for a zone (in this example, `190101`) but not for any of its child detectors (`190101/xx`), then the remark specified for the zone will also be applied to all the child detectors of that zone.
`Zone_550113`	550113	Remark for zone 550113	If the CSV file includes a row for a zone (in this example, `550113`) and rows for only some of its child detectors (`550113/01` and `550113/07`), then the remark specified for the zone will also be applied to any other child detectors not included in the CSV file.
`Detector_550113/01`	550113/01	Remark for detector 550113/01
`Detector_550113/07`	550113/07	Remark for detector 550113/07
`Detector_222104/01`	222104/01	Remark for detector 222104/01	If the CSV file contains a row for one or more child detectors (in this example, `222104/01` and `222104/02`) but no row for their parent zone (`222104`) then the remark specified for the child detector with the lowest address will also be applied to the parent zone.
`Detector_222104/02`	222104/02	Remark for detector 222104/02
