Connect the Configurator Tool to the Adapter

  1. In the Notifier AM configurator tool page, click Go online.
  2. In the Connect to Adapter dialog box, do the following:
    a. In the IP field, enter the IP address of the machine hosting the adapter.
    b. In the Port field, enter 50000 (default communication TCP port).
    c. Click Connect.
  3. Click Yes to overwrite the local configuration.
  4. Click Yes to override the existing active configuration.

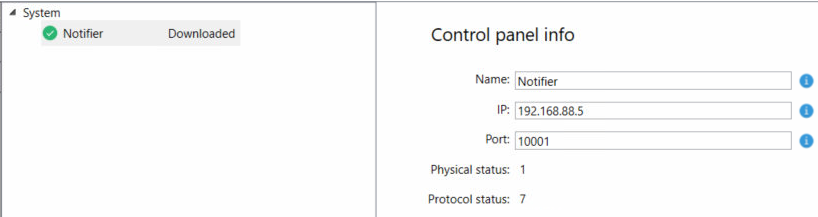

  5. If the connection is established successfully, the adapter status is (Connected). Under System on the left, the default branch (Notifier) is displayed and its status is (Connected).
    NOTE: If the adapter status is (Offline), check the configuration settings and try again to establish a connection.
