Create, Configure, and Associate Network

  1. Desigo CC application is open.
  2. System manager is in Engineering mode.

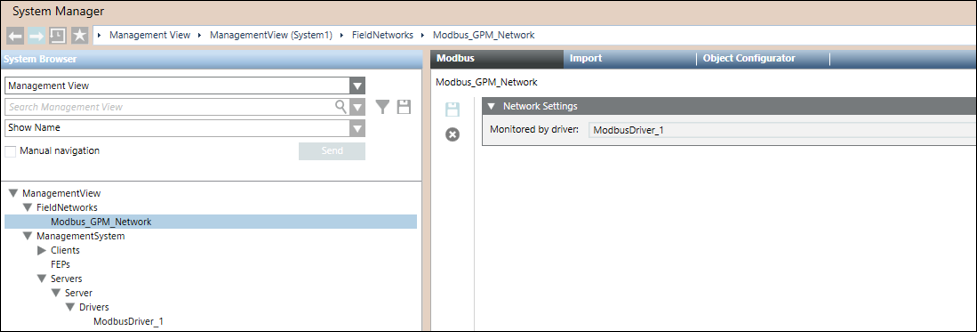

  1. In System Browser, navigate to Management View > FieldNetworks.
  2. Select Object Configurator tab.
  3. Click Create .
  4. Select required network.
    For example: Create Modbus network for Modbus devices, and associate it with the Modbus driver(See Modbus).
  5. Enter Name and Description for the network.
  6. Click OK.
